Sentinelle Medical 3-Channel Biopsy MRI Coil Concept

The 3-channel biopsy coil is a preliminary concept with the aim of incorporating coil loop elements within a biopsy grid, putting them very close to the patient's skin.

Copper conductors are overmolded with polyurethane and glued to half of the enclosure. The ultimate goal was to overmold through injection molding though the concept was never developed to that point.

The conducting elements form part of three overlapping copper loops. A PCB completes these loops.

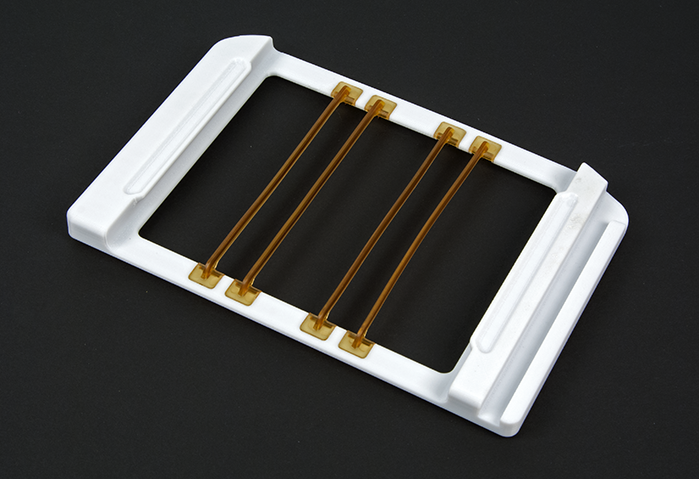

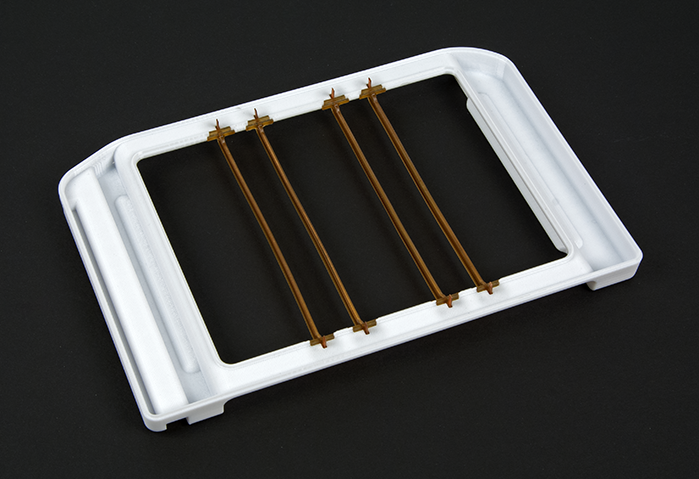

3-Channel Biopsy Coil Enclosure Half Prototype

3-Channel Biopsy Coil Enclosure Half Prototype

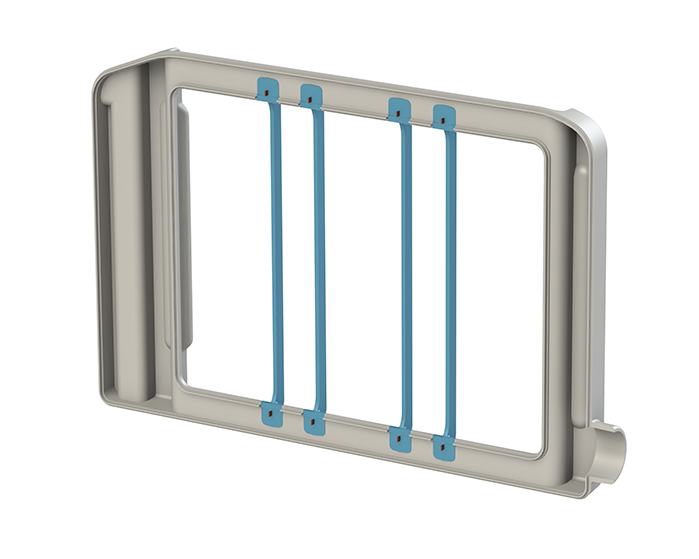

Enclosure Half Showing Conductor Elements

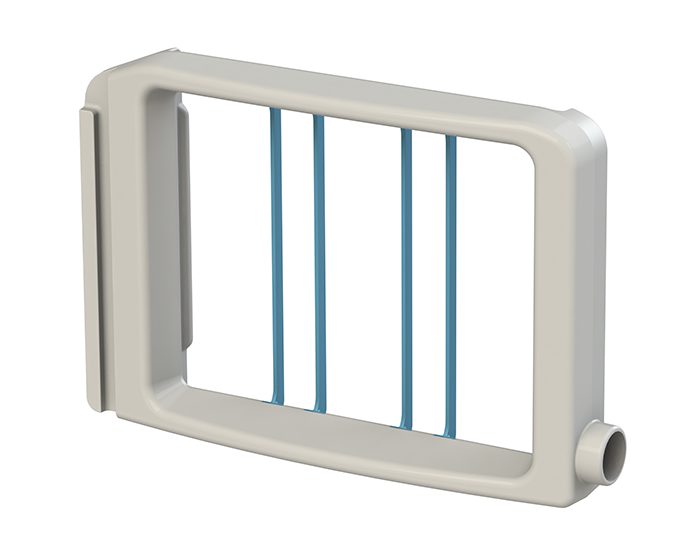

Complete Enclosure (User Side)

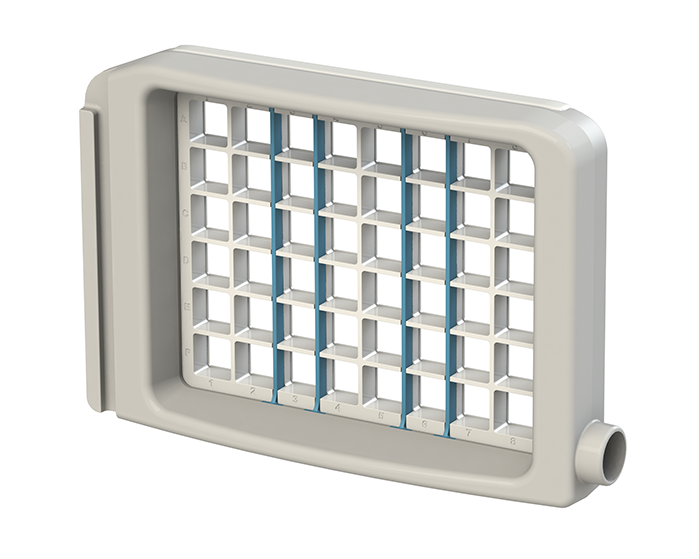

Complete Enclosure with Biopsy Grid

Complete Enclosure with Biopsy Grid

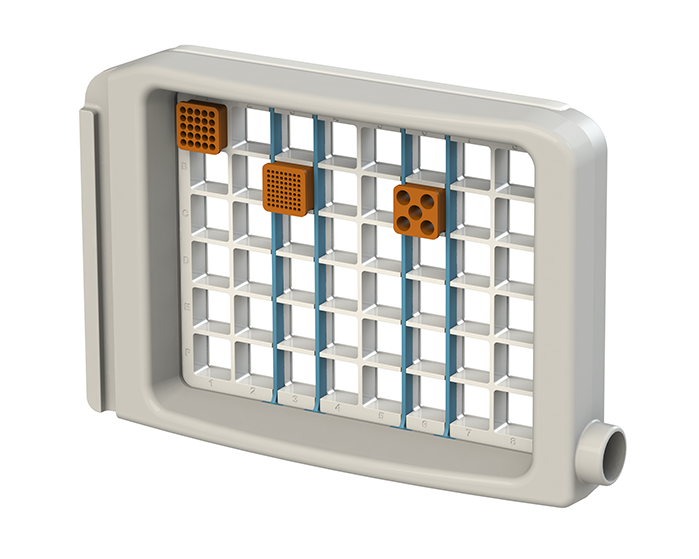

Complete Enclosure with Biopsy Grid and Needle Blocks

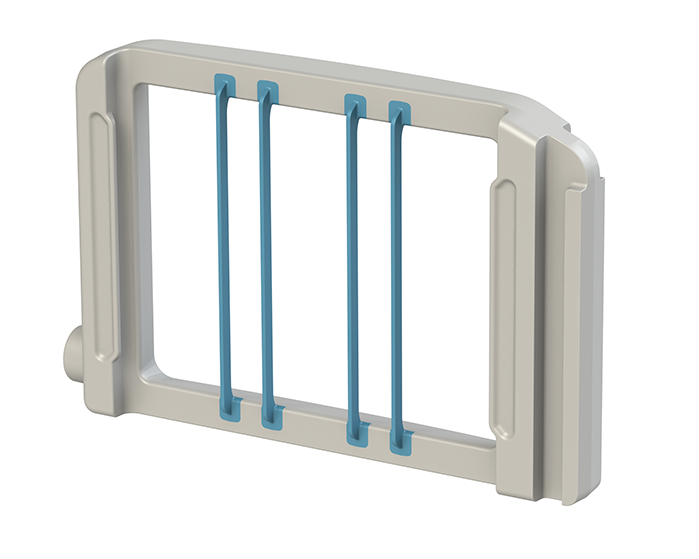

Complete Enclosure (Patient Side)

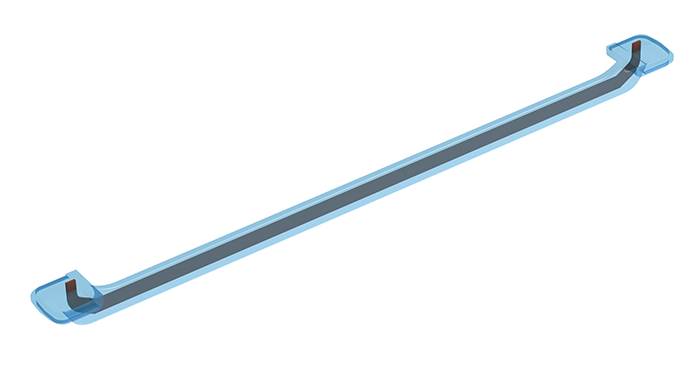

Conductor Element Detail - Beryllium Copper Strip with Plastic Overmolding

Conductor Element Detail - Beryllium Copper Strip with Plastic Overmolding

3-Channel Biopsy Coil with Interface Box

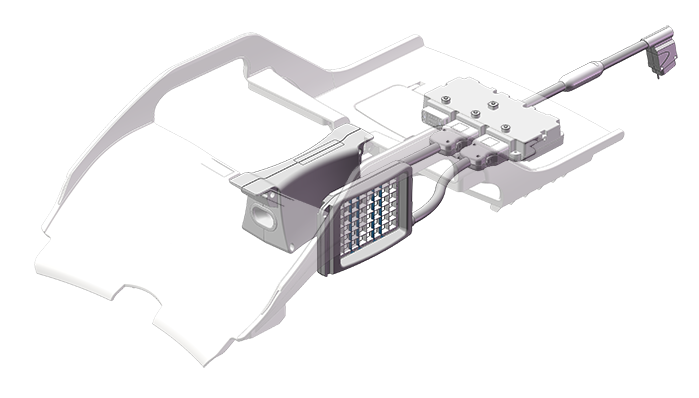

Unilateral 3-Channel Biopsy Setup
