Single Loop Coil Enclosure Glue Fixture

A fixture used to glue the two main injection-molded parts of the Sentinelle single loop MRI coils.

The single loop coils had to be hermetically sealed to prevent fluid ingress. After extensive development the best solution was to glue the parts together. This fixture ensured consistent and repeatable glue joints.

The left and right single loop coil assemblies are mirror images so the glue fixture top plate is reversible to accommodate both.

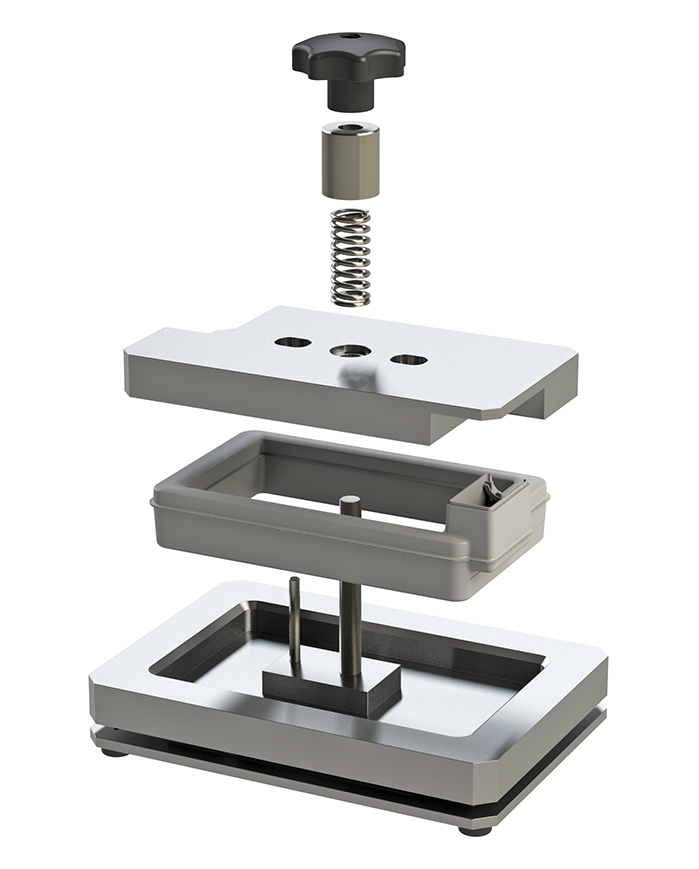

Glue Fixture
