Modus V Setup Wizard Concept

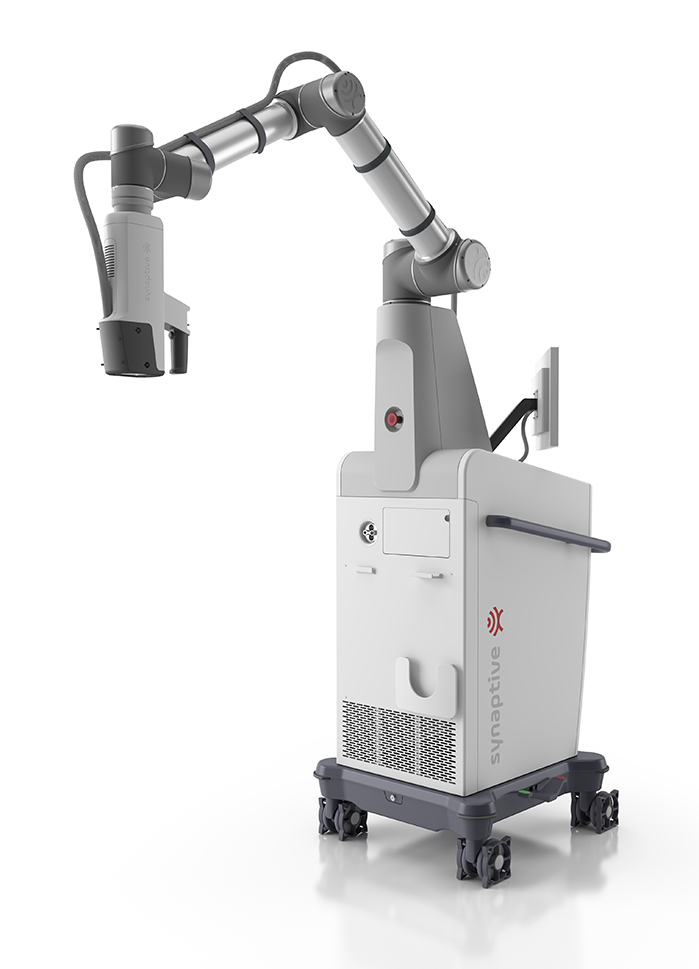

Modus V is a complicated device and clinical application staff are normally needed in the operating room when it’s used. Synaptive’s goal is to redesign the UX and UI to make Modus V usable by all operating room staff with minimal training. Initial setup and positioning of the device is often the most complicated part of the process.

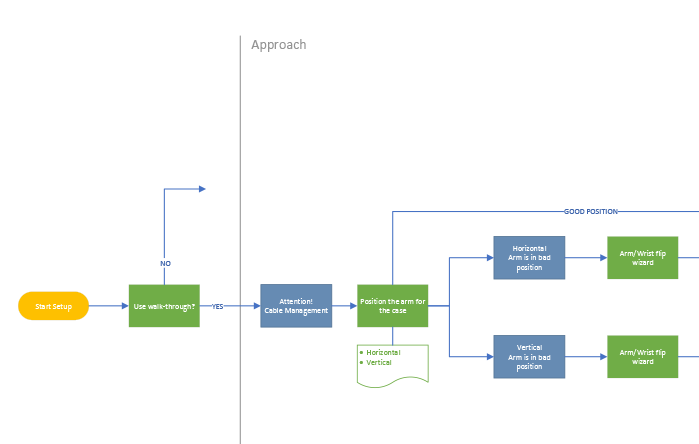

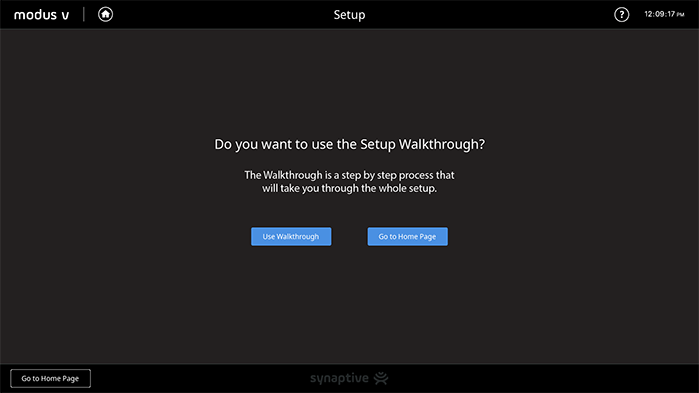

This is a preliminary concept for a setup wizard that will help users configure and position Modus V in the operating room.

Click on an image. A full-size version will appear in a new browser tab or window.
