Synaptive Operator Cart Concept

A redesign of Synaptive’s Guide Operator Cart.

The existing cart used a laptop as the central computer running Guide software. As the software was developed to increase functionality the laptop became underpowered. Additional input/output connection were also needed so a complete redesign was the only solution.

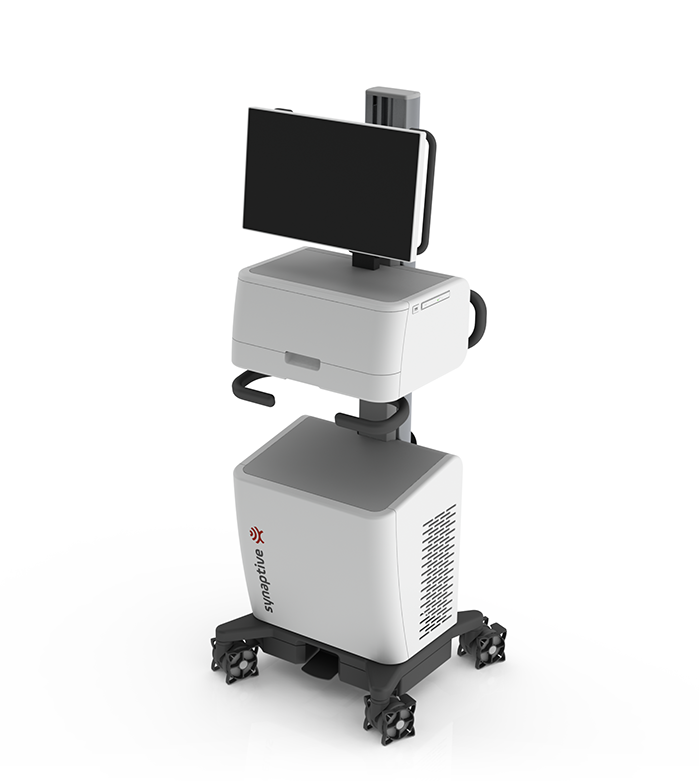

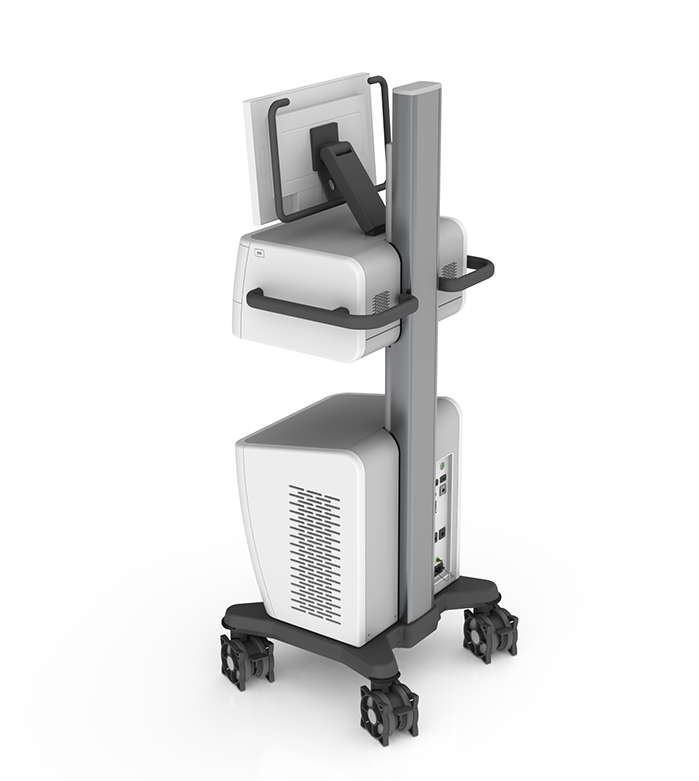

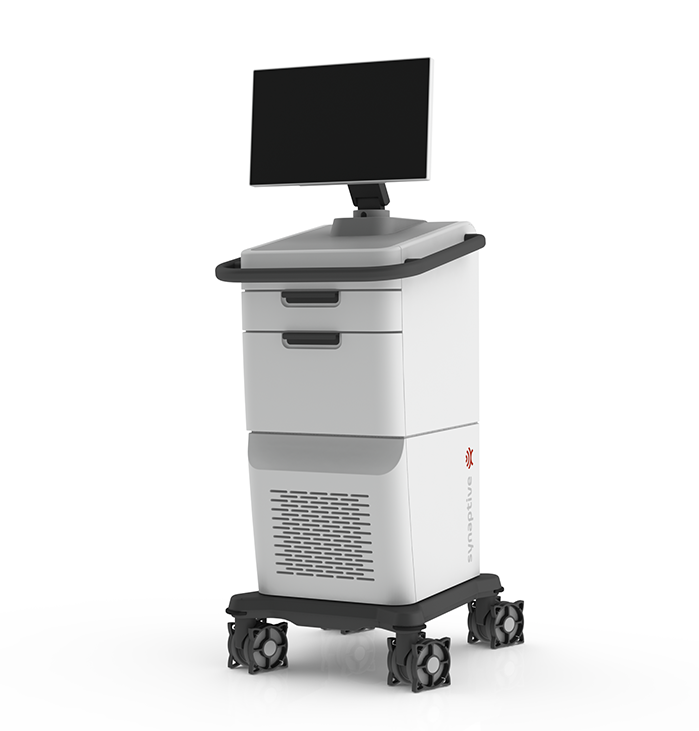

Operator Cart Final Concept

Operator Cart Final Concept

Operator Cart Final Concept

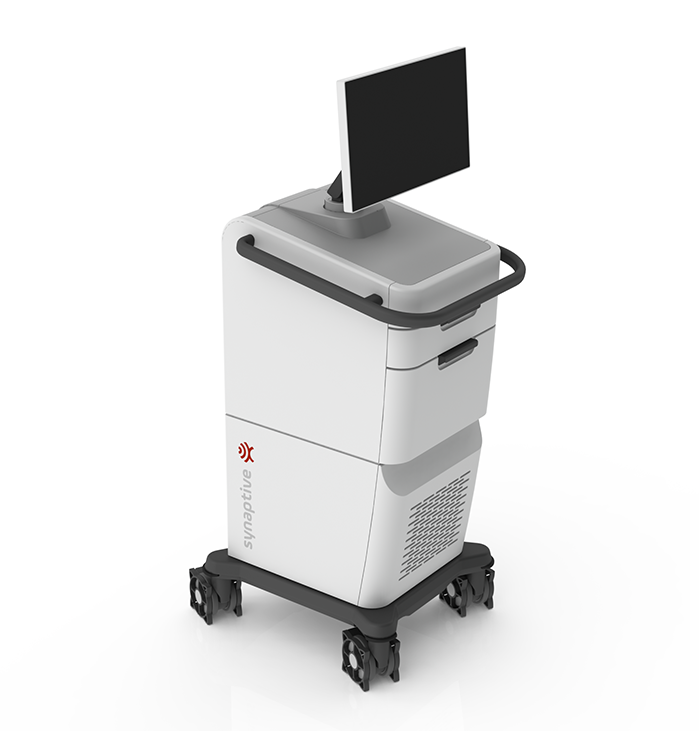

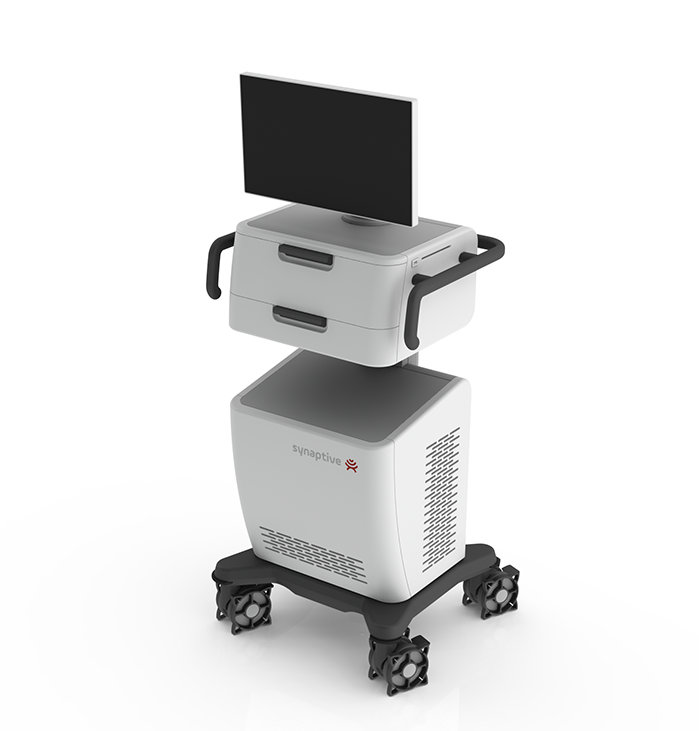

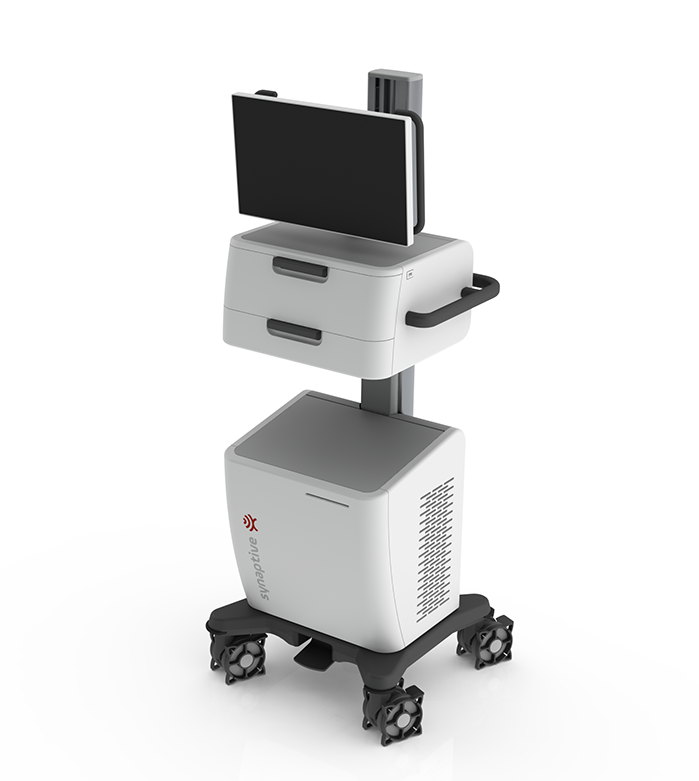

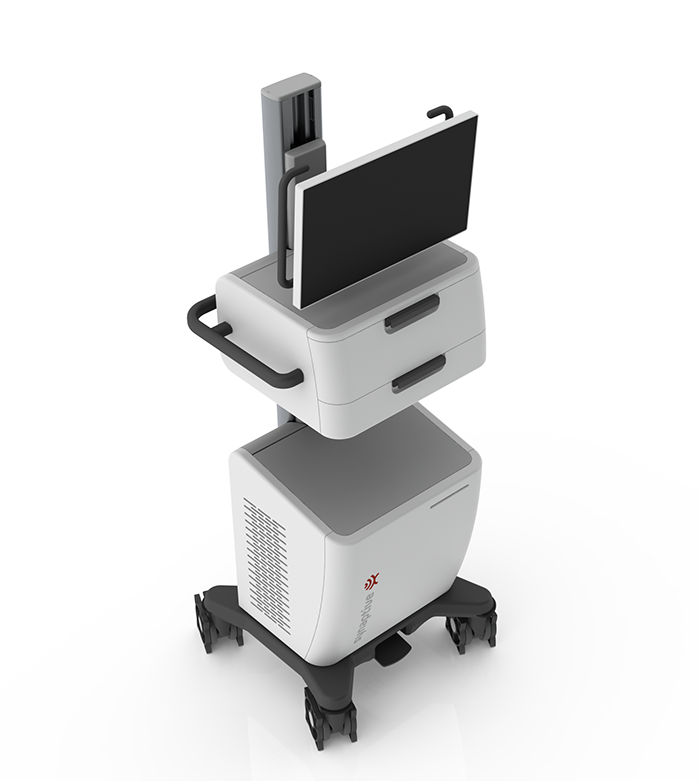

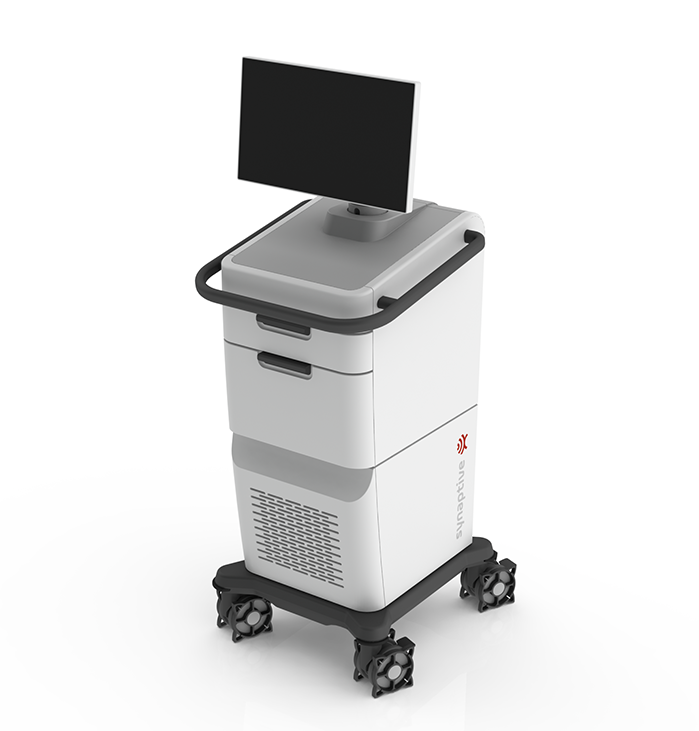

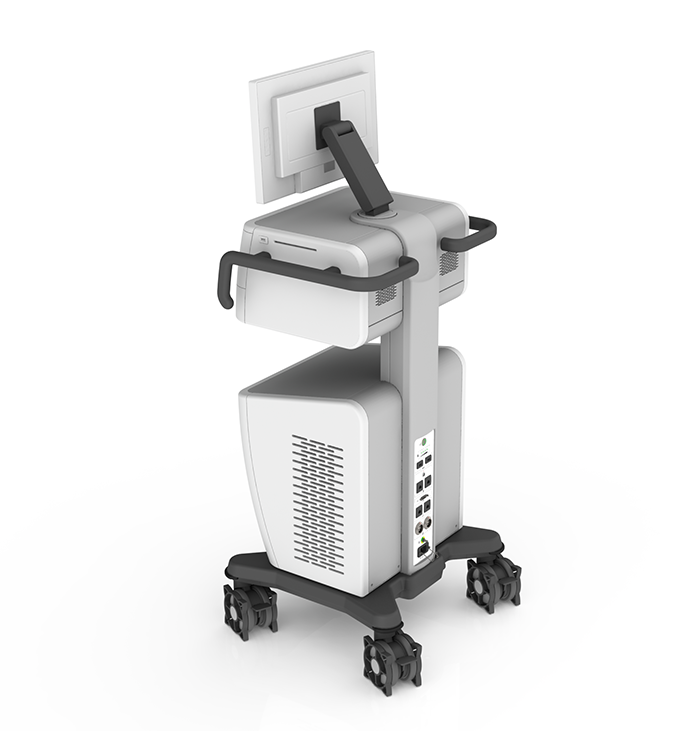

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

Operator Cart Concept

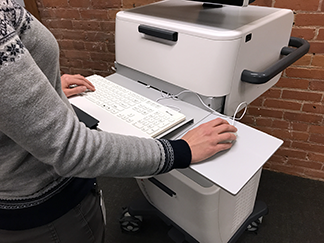

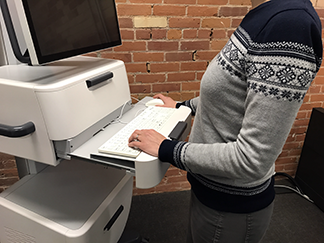

A full-size appearance and ergonomics model was built to evaluate form and perform formative usability testing. The model was height adjustable, had functioning drawers, and a movable monitor. It was sent to a partner hospital where representative users provided essential feedback.

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

Appearance and Ergonomics Test Model

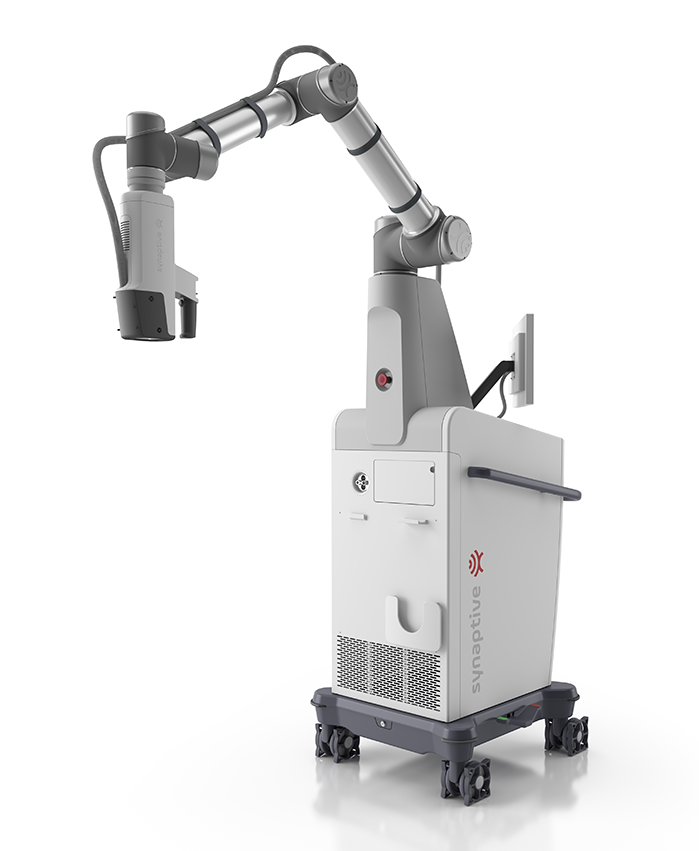

Modus V

The Modus V device, a robotic arm equipped with a high-resolution camera and light source, was the source of the Operator Cart’s form. Modus V was developed first so the Operator Cart was essentially a line extension product.

Existing Operator Cart and Surgeon Monitor, with Tracking Camera
