Dual-Cavity MRI Breast Phantom

An MRI phantom is a verification device, typically representing a human body part. It’s used to evaluate, analyze, and tune the performance of an MRI scanner and RF coils.

A small but complicated rotationally-molded MRI phantom. It is a hermetically sealed, fluid-filled low-density polyethylene vessel. The phantom has two cavities; one filled with a saline solution, the other with mineral oil. At the centre is a plastic plate machined with a pattern of high precision cut-outs.

Like all MRI phantoms and coils, it has to be completely free of metal fragments.

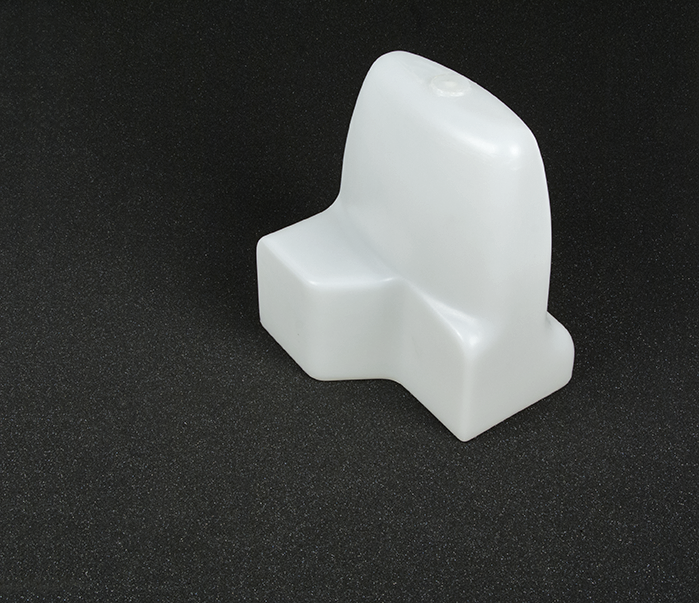

Breast Phantom Single (Shown Upside Down)

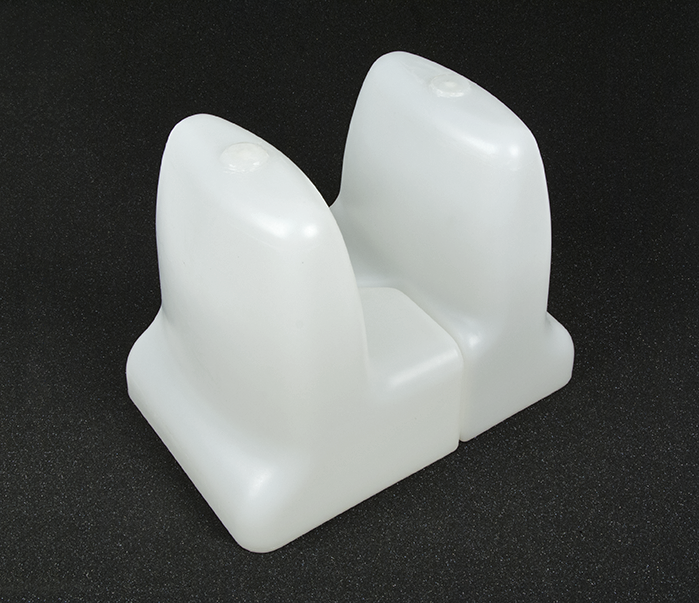

Breast Phantom Pair (Shown Upside Down)

Toshiba MRI Breast Coil System - 16-Channel Setup for Phantoms

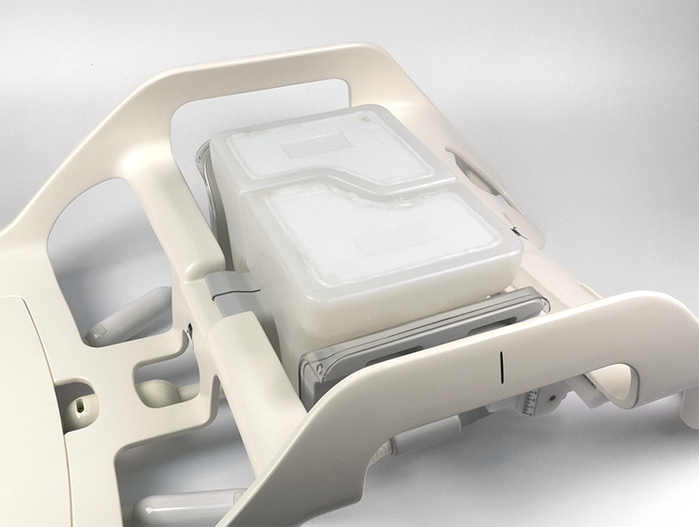

Toshiba MRI Breast Coil System - 16-Channel Unilateral Phantom Setup

Toshiba MRI Breast Coil System - 16-Channel Bilateral Phantom Setup

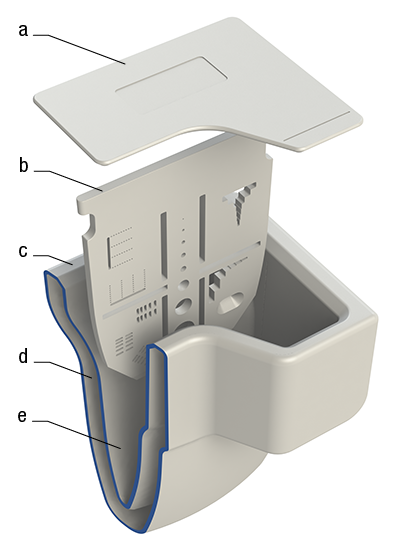

Phantom Components

  1. Cover - machined LDPE plate permanently welded onto phantom body
  2. Resolution Plate - made with cutouts of various size and shape which are used as targets during scanning
  3. Phantom Body - rotationally-molded LDPE main component of the phantom
  4. Outer Cavity - can be filled with a salt water solution (manganous chloride 4-Hydrate, sodium chloride, water) or oil
  5. Inner Cavity - can be filled with a salt water solution (manganous chloride 4-Hydrate, sodium chloride, water) or oil
