Sentinelle Medical RF Enclosure Parts

Injection-molded polycarbonate enclosures for the Siemens breast MRI coil system interface box. The interface box is the central component of the RF system and connects the coils to the MRI scanner.

These parts are a redesign of the original polyurethane enclosures.

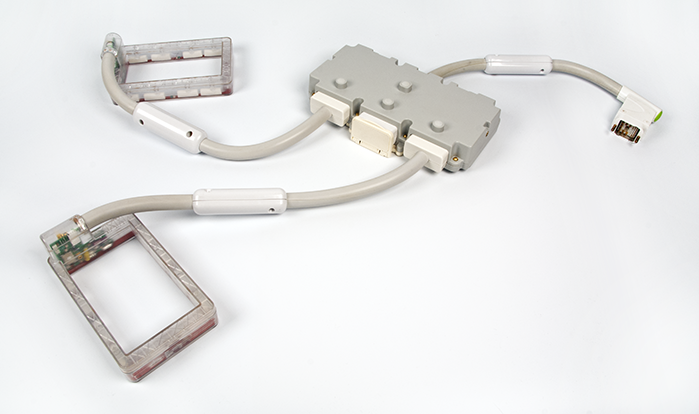

2-Channel RF Configuration with First-Off-Mold Single Loop Coil Enclosures

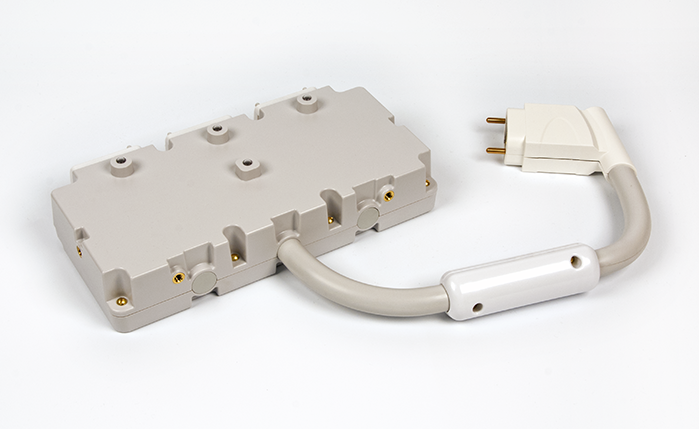

Interface Box Detail

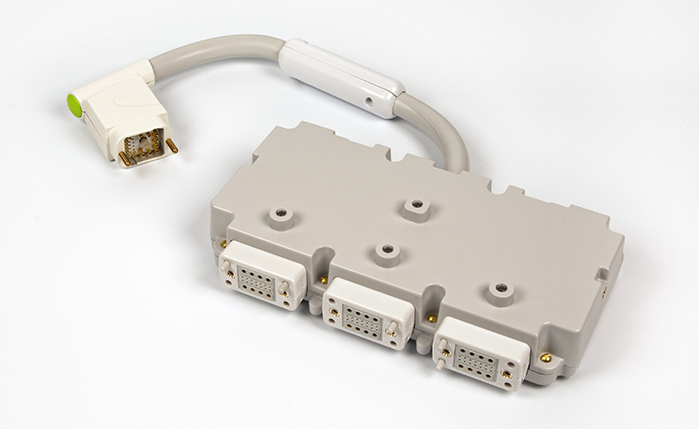

Interface Box Detail with Medial Connector Plug

Interface Box Assembly

Interface Box Assembly
