Sentinelle Medical Patient Support Transporter Concept for Toshiba

Early concept development showing that a patient transporter could be built to maneuver in confined MRI rooms.The challenge was to develop a patient transporter for even the smallest MRI room, some of which are very confined.

Typical transporters are often large and heavy, built with a safety factor of four times maximum patient weight. That could be as much as 800 kg.

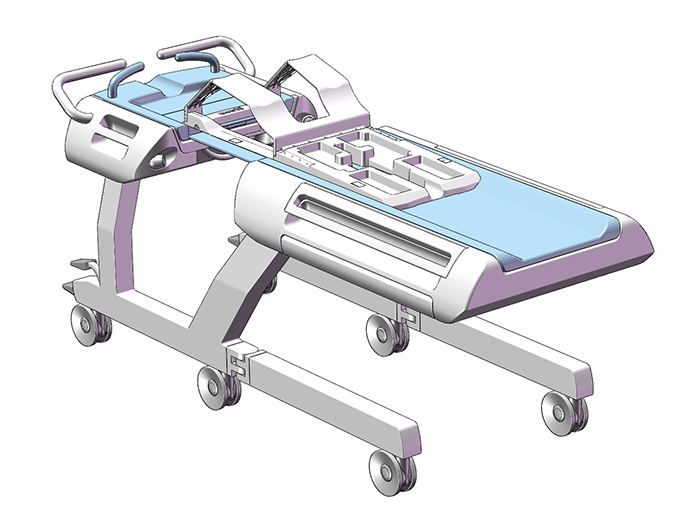

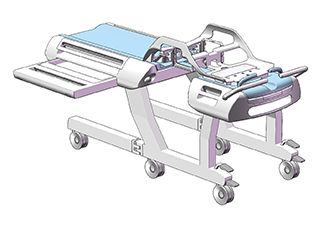

Transporter Concept with Toshiba Breast Patient Support

Transporter Concept with Early Prostate Patient Support

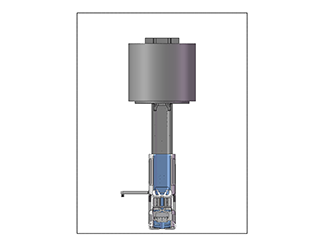

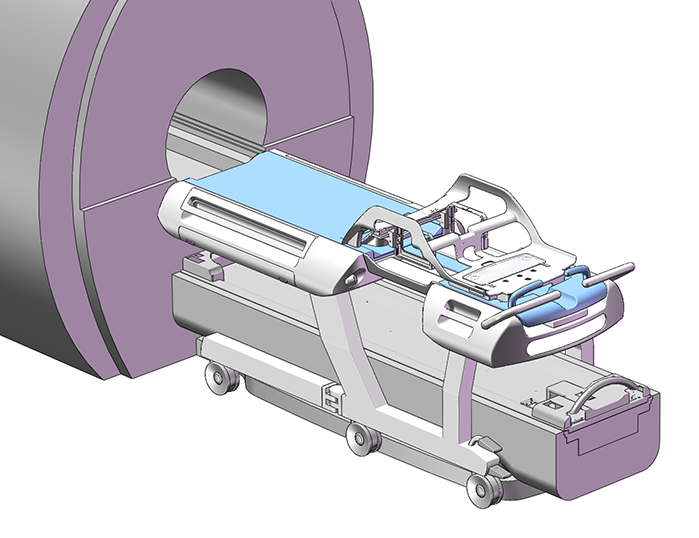

Advance to Scan

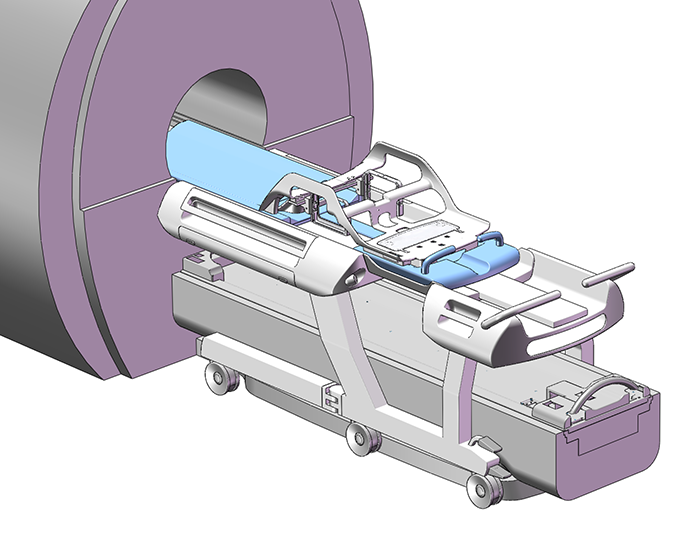

Advance to Scan

Advance to Scan

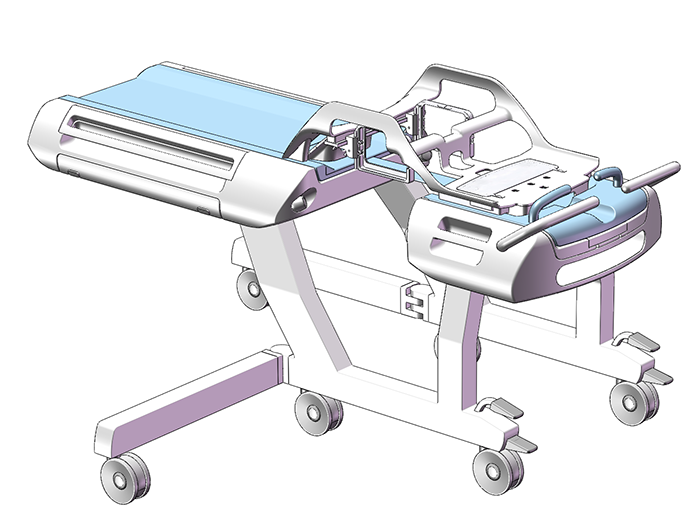

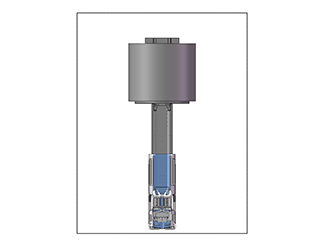

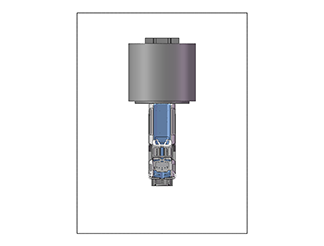

Swinging Beams Help with Transporter Positioning in Confined MRI Rooms

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

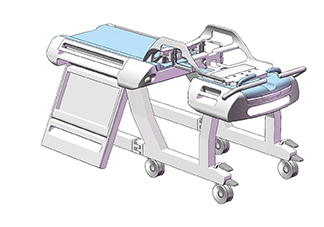

Patient Mount/Dismount Step

Patient Mount/Dismount Step

Patient Mount/Dismount Step

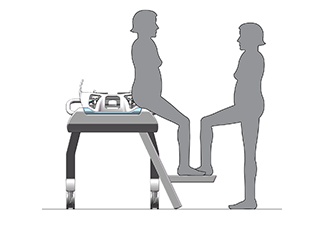

Step with 50th Percentile North American Woman

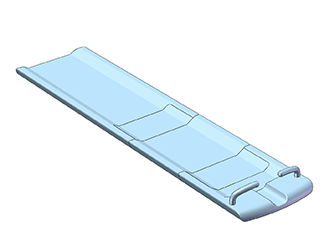

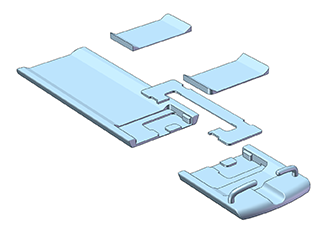

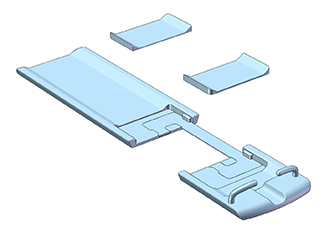

A concept for a reconfigurable transporter horizontal stage that can be used for many kinds of MRI imaging systems. For breast systems, the narrow element that connects the head and foot end of the stage is positioned at the centre. For prostate systems, it’s at the side. The gap between the head and foot end can also be closed off completely.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6
